Custom providers

Custom providers let you connect a provider that isn’t in the WorkOS catalog. Instead of choosing a pre-built provider, you supply the provider’s configuration yourself. Once configured, a custom provider works just like a catalog provider: it appears in the Pipes widget, your users connect their accounts, and you fetch credentials from your backend.

A custom provider authenticates with either OAuth or an API key. Choose OAuth when the provider runs an authorization flow, and API key when it issues each user a single opaque key.

A custom provider is different from custom credentials. Custom credentials let you use your own OAuth application with a provider that WorkOS already supports. A custom provider lets you define a provider that WorkOS doesn’t yet support at all.

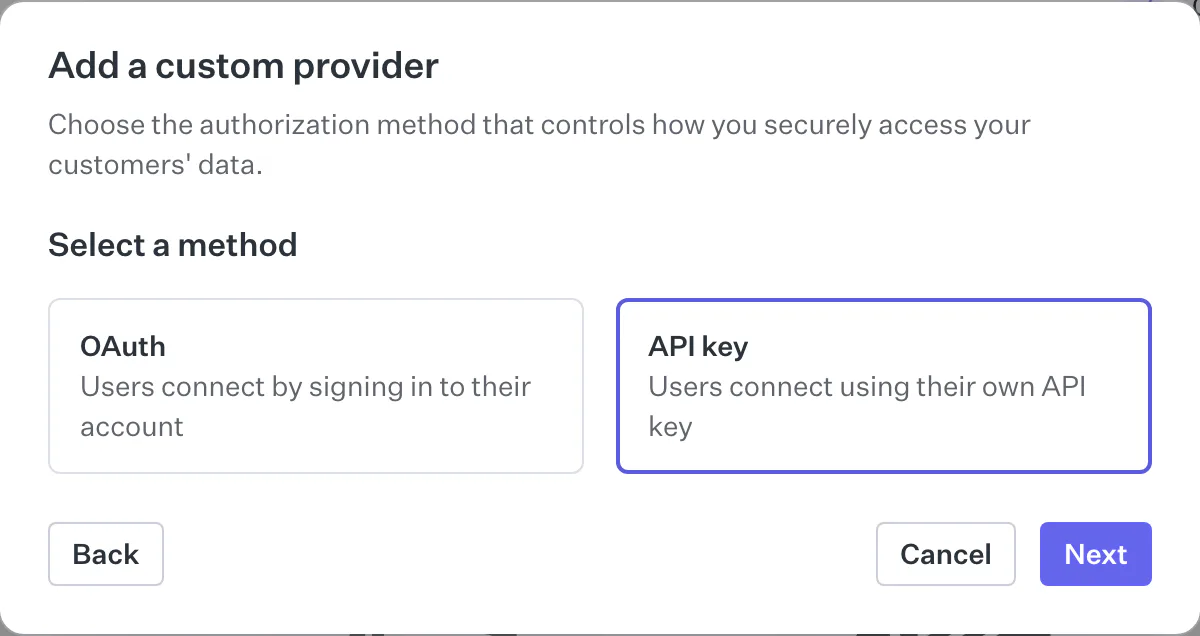

Open the Pipes section of the WorkOS Dashboard and click Connect provider, then choose Add a custom provider. Pick the authentication method the provider uses – OAuth or API key – and the rest of the form follows from that choice.

An OAuth provider takes the full configuration:

1. Provider details. Enter a name for the provider, a slug that identifies it within your environment, and an optional description shown to users in the widget.
2. OAuth endpoints. Enter the provider’s authorization URL and token URL. If the provider issues refresh tokens from a different endpoint, set the refresh token URL as well.
3. Credentials. Create an OAuth application in the provider’s dashboard and register the redirect URI shown in the form. Then enter the client ID and, if the provider requires one, the client secret.
4. Scopes. Add the scopes your application needs. Users grant these scopes when they authorize the connection.

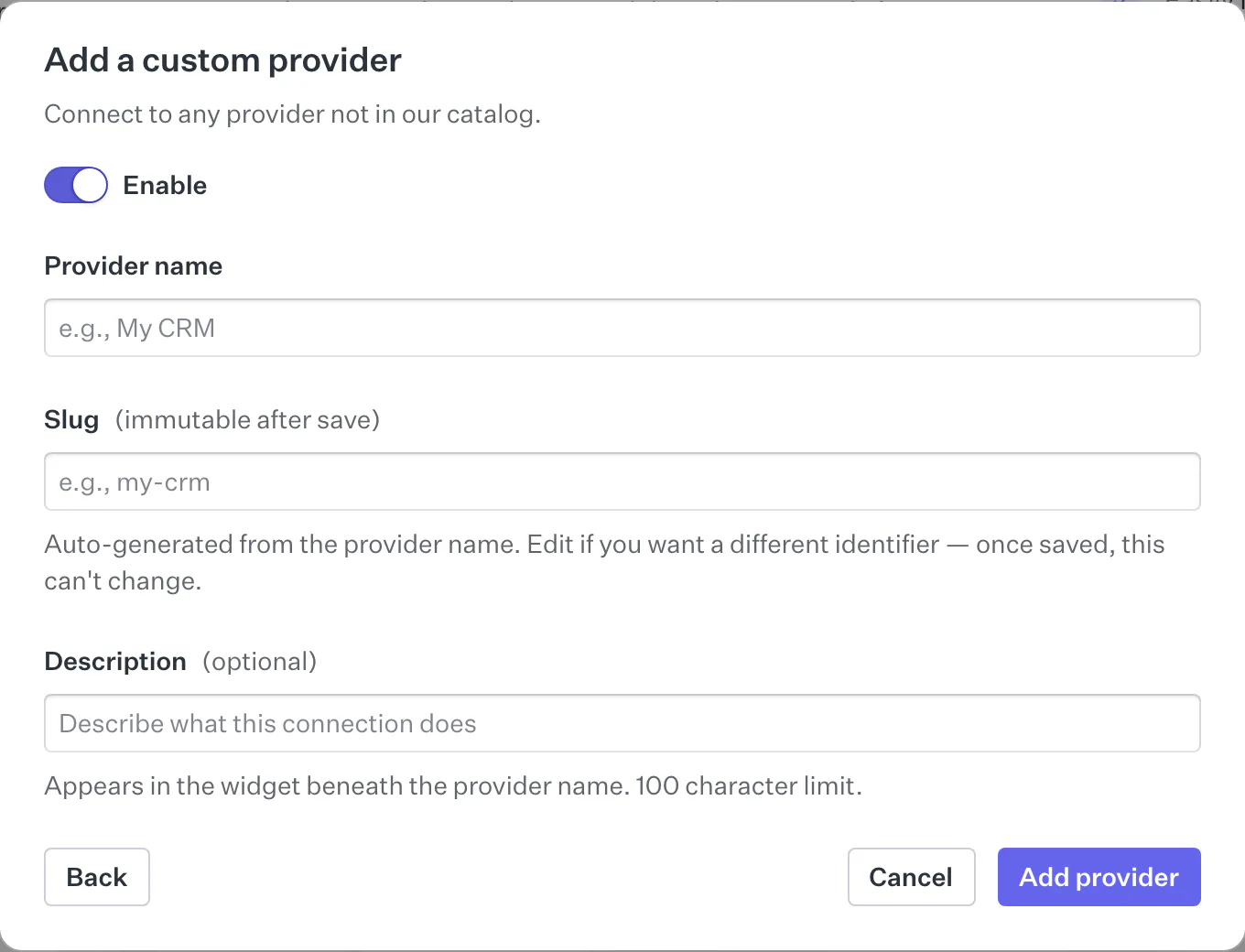

An API key provider takes the provider details and nothing else. See API key custom providers.

These settings apply to custom providers that authenticate with OAuth. Most providers work with the default settings, but you can adjust how WorkOS builds the authorization request and exchanges tokens to match your provider’s requirements.

A custom provider can authenticate with an API key instead of OAuth. Choose API key when adding the provider, or declare one from your backend with the create data integration endpoint by setting auth_methods to ["api_key"] alongside a custom_provider block.

curl --request POST \
  --url "https://api.workos.com/data-integrations" \
  --header "Authorization: Bearer sk_example_123456789" \
  --header "Content-Type: application/json" \
  -d @- <<'BODY'
    {
        "provider": "my-crm",
        "auth_methods": ["api_key"],
        "description": "Sync deals and contacts from My CRM.",
        "custom_provider": {
            "name": "My CRM"
        }
    }
BODY

An API key custom provider has no OAuth application behind it, so credentials is null on the integration and name is the only field the provider definition accepts. Supplying OAuth configuration fails the request rather than being silently dropped, so a misconfigured provider surfaces immediately instead of failing later when a user tries to connect. These are rejected:

• The endpoints: authorization_url, token_url, and refresh_token_url
• The flow settings: pkce_enabled, request_scope_separator, scopes_required, client_secret_required, additional_authorization_parameters, token_body_content_type, and authenticate_via
• credentials, which belong to an OAuth application

Two related behaviors are worth knowing. scopes are accepted but cleared, since an API key carries whatever access the key itself was issued with and there’s nothing to request at authorization time. And a custom provider declares exactly one authentication method – a list containing both api_key and oauth is rejected.

Changing the definition and rotating a key are separate requests. Sending custom_provider, description, or scopes alongside an api_key block is rejected, because the definition and the stored key are written by different paths and accepting both would leave one of them stale.

Users supply their own keys once the provider exists, exactly as they do for a catalog API key provider. See API key providers for the widget flow and for retrieving credentials from your backend.

A custom provider appears in the Pipes widget alongside your other providers. Users connect their account through the widget, which manages the OAuth authorization flow and stores the connection. For an API key provider the widget renders a key entry form instead, described in API key providers.

Once a user has connected the provider, fetch access tokens from your backend to call the provider’s API on their behalf. Pipes refreshes the token when needed, so you always have a fresh token.

import { Octokit } from '@octokit/rest';
import { WorkOS } from '@workos-inc/node';

const workos = new WorkOS(process.env.WORKOS_API_KEY);

async function getUserGitHubRepos(userId, organizationId) {
  const { accessToken, error } = await workos.pipes.getAccessToken({
    provider: 'github',
    userId: userId,
    organizationId: organizationId,
  });

  if (!accessToken) {
    // Handle error: user needs to connect or reauthorize
    console.error('Token not available:', error);
    return;
  }

  // Check if required scopes are missing
  if (accessToken.missingScopes.includes('repo')) {
    console.error('Missing required "repo" scope');
    return;
  }

  // Use the access token with GitHub API
  const octokit = new Octokit({
    auth: accessToken.token,
  });

  const { data: repos } = await octokit.repos.listForAuthenticatedUser();

  return repos;
}

Edit a custom provider’s configuration at any time from its settings in the Pipes section of the dashboard.

Deleting a custom provider also removes its connected accounts. Existing access tokens stop working, and users will no longer see the provider in the widget.
